moxa devices settings

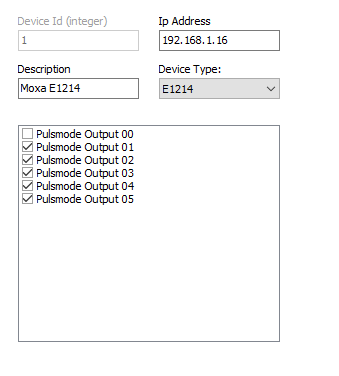

Add device(s)


  • Device Id:
    - created automatically
  • Ip Address:
    - Ip Address or Hostname of the Moxa Device
  • Description:
    - a meaningful description which will be used in the logfile and on alarm emails.
  • Device Type:
    - a choice of supported moxa devices.


Important Note:

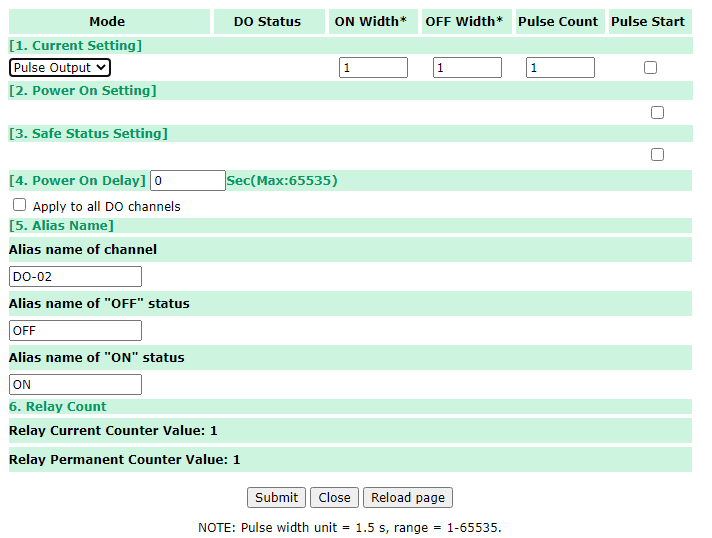

Moxa Outputs may be configured in two ways. DO or Pulse Output.

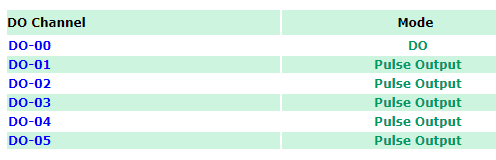

You should set all Outputs to "Pulse Outputs". This means on a Pulse the output will stay closed and opens automatically after the set pulse width.



On the example above the Output stays open 1.5 seconds.


Important:

Its mandatory to set the pulse mode outputs in AnprFairpark according to the real moxa output settings!
